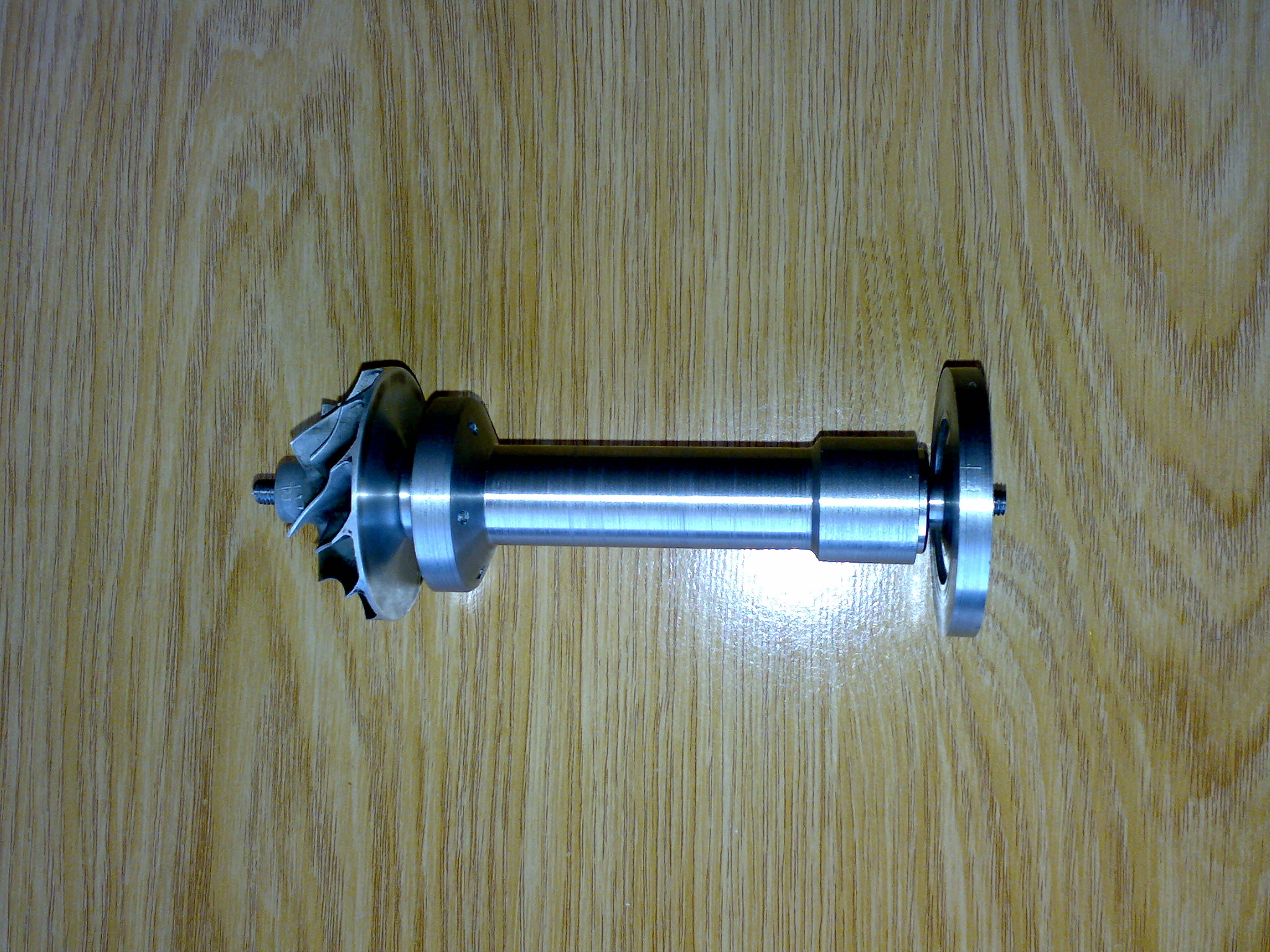

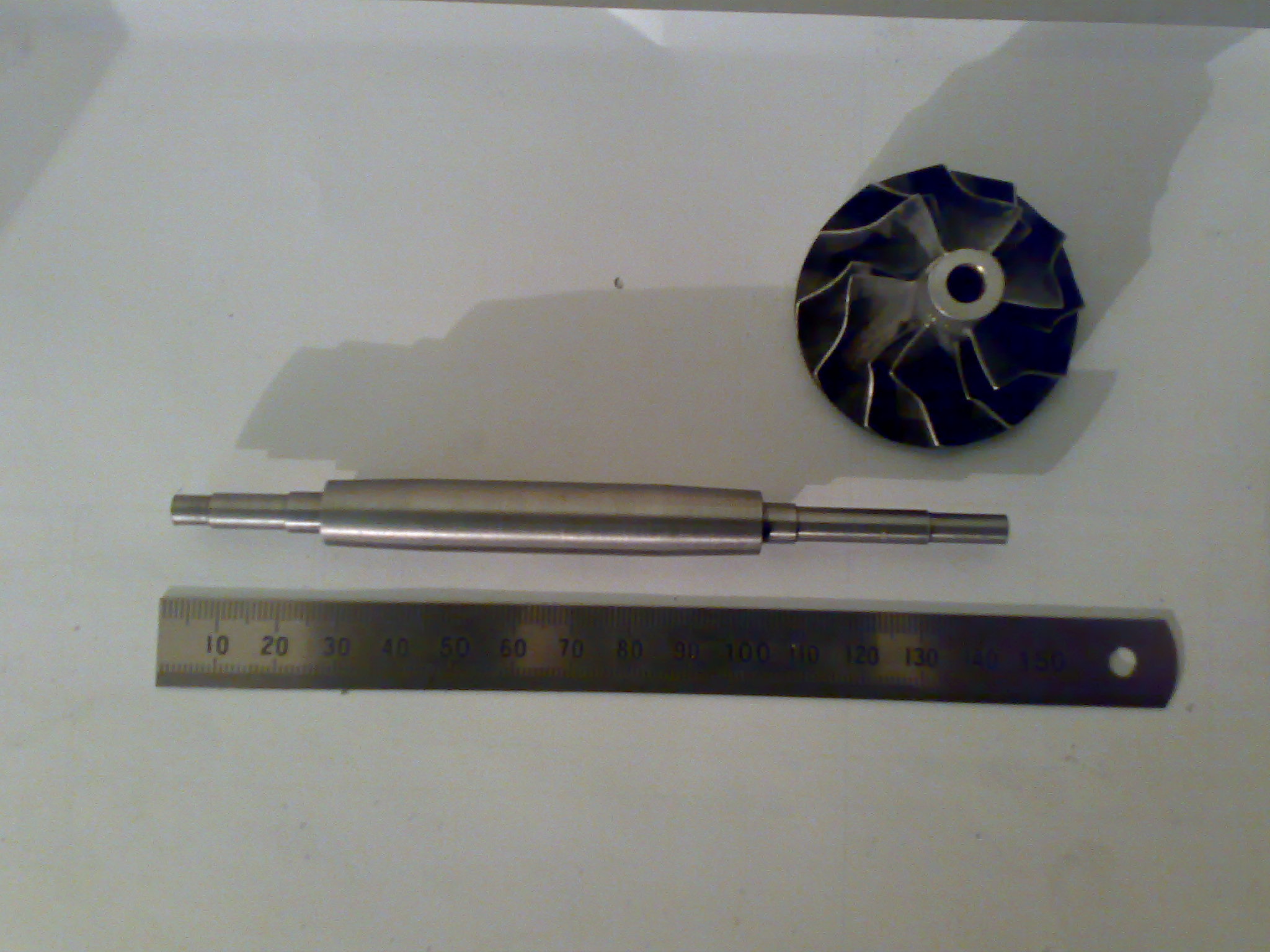

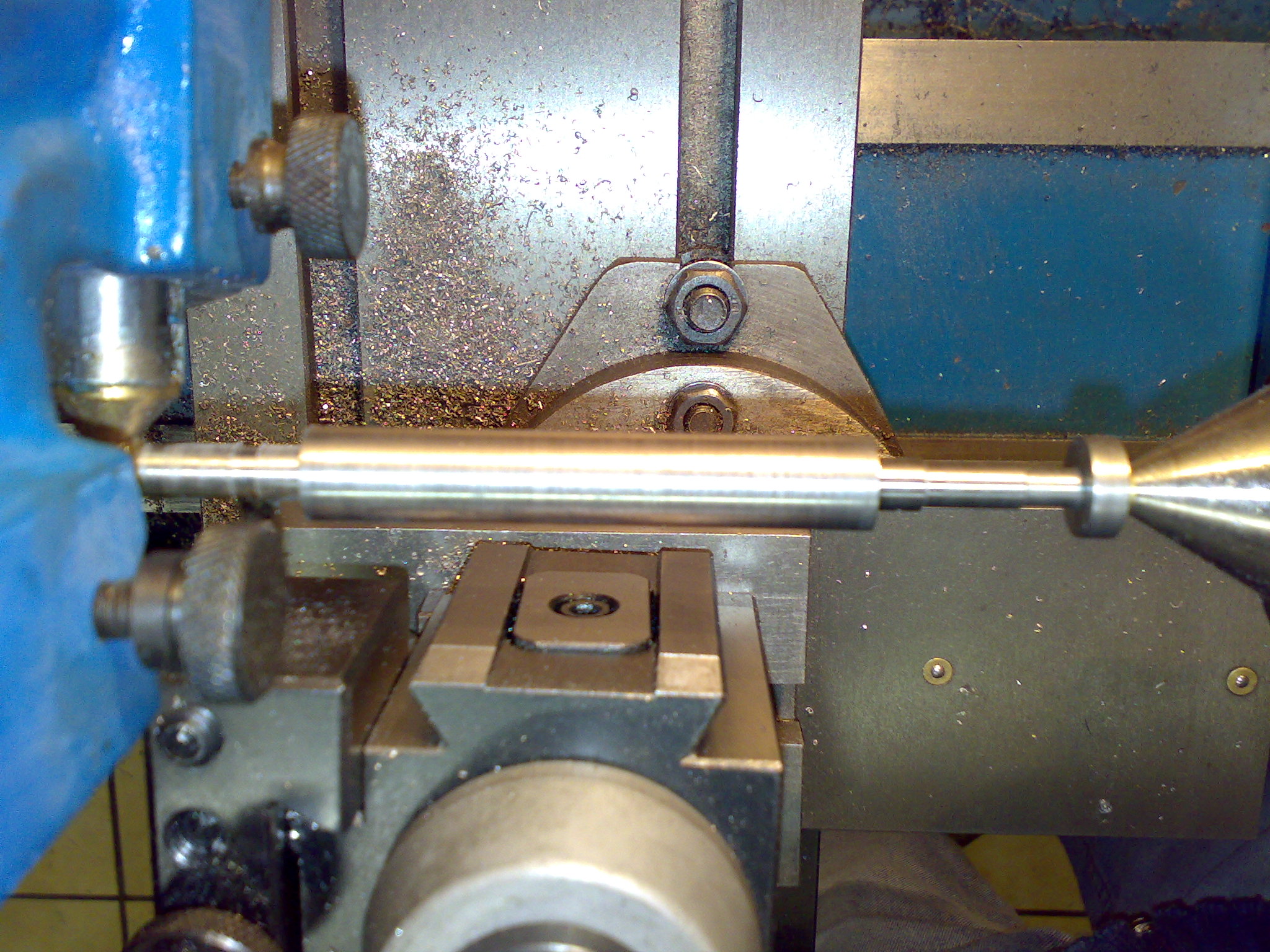

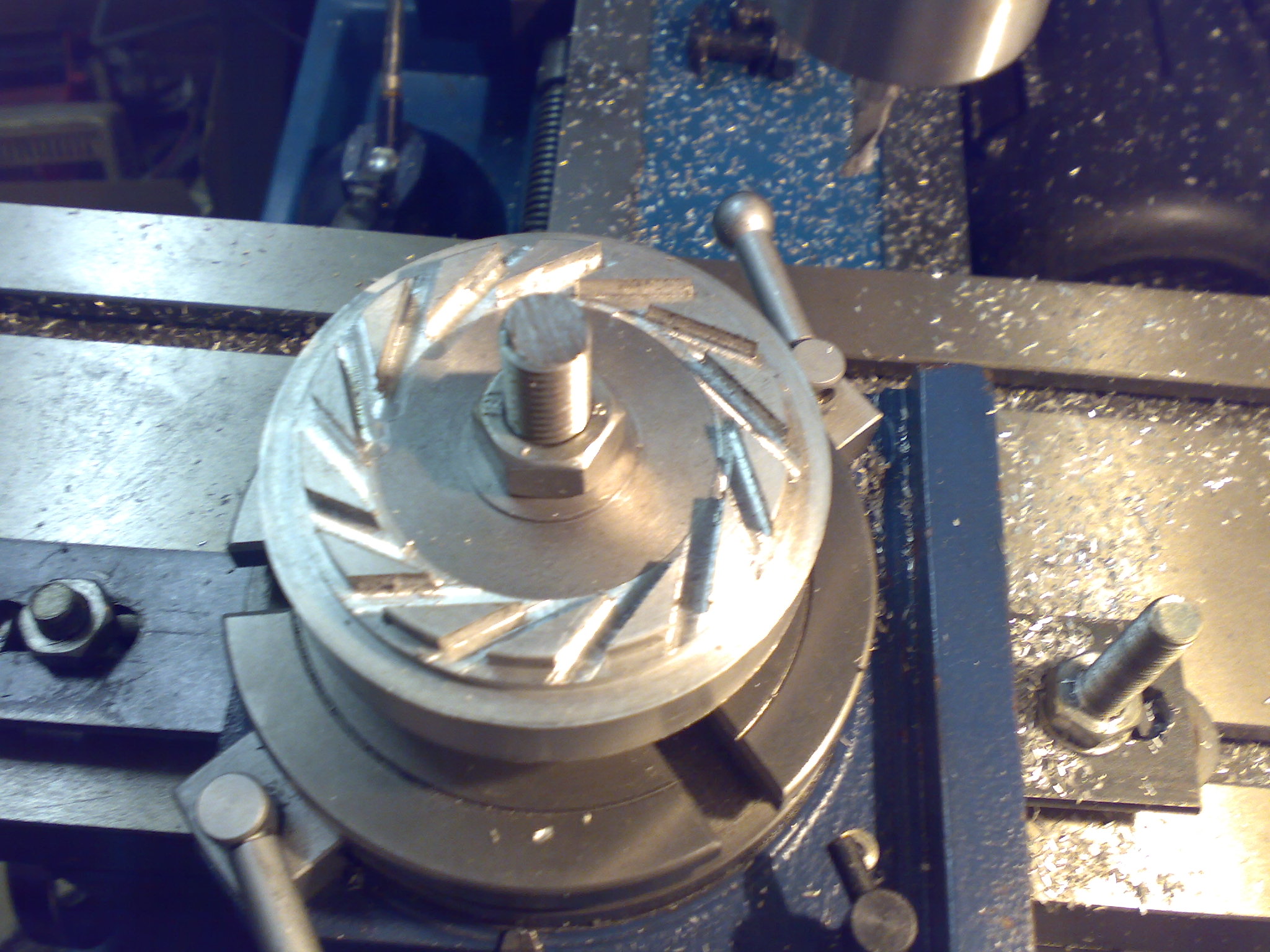

So the CAD drawing I got was for a KJ66. I had to re-design to accommodate a compressor wheel dia of 48mm. All well and into machining... I started with the shaft. Here is the shaft mounted and supported by a steady for machining. This was done with effort to obtain the precision required. Turbines turn at 100K rpm and need to be preciseā¦.. The finished shaft appears below. I had it polished with 1200 water paper. It came out well and will be checked for concentricity. The compressor wheel appears above. The completed housing, compressor wheel and turbine blank. |
