A—Home made gear  B– Starter shaft  C– Home made pinion  D– Gear box Cover

The gear box will mount onto the crank case at the rear of the glow engine. I have also worked on designing a centrifugal clutch. You see this as the little shiny portion on the front of the  output shaft…...

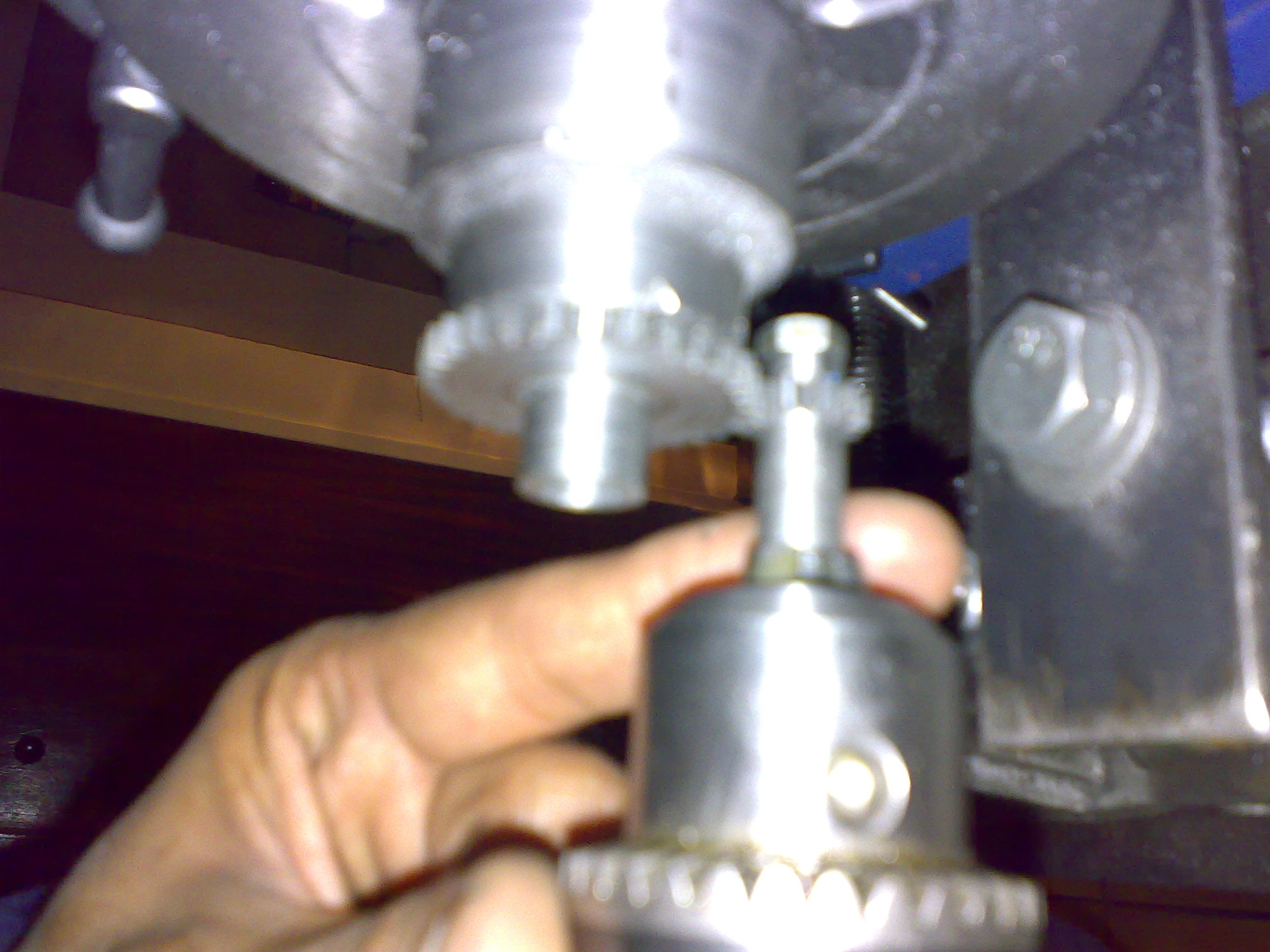

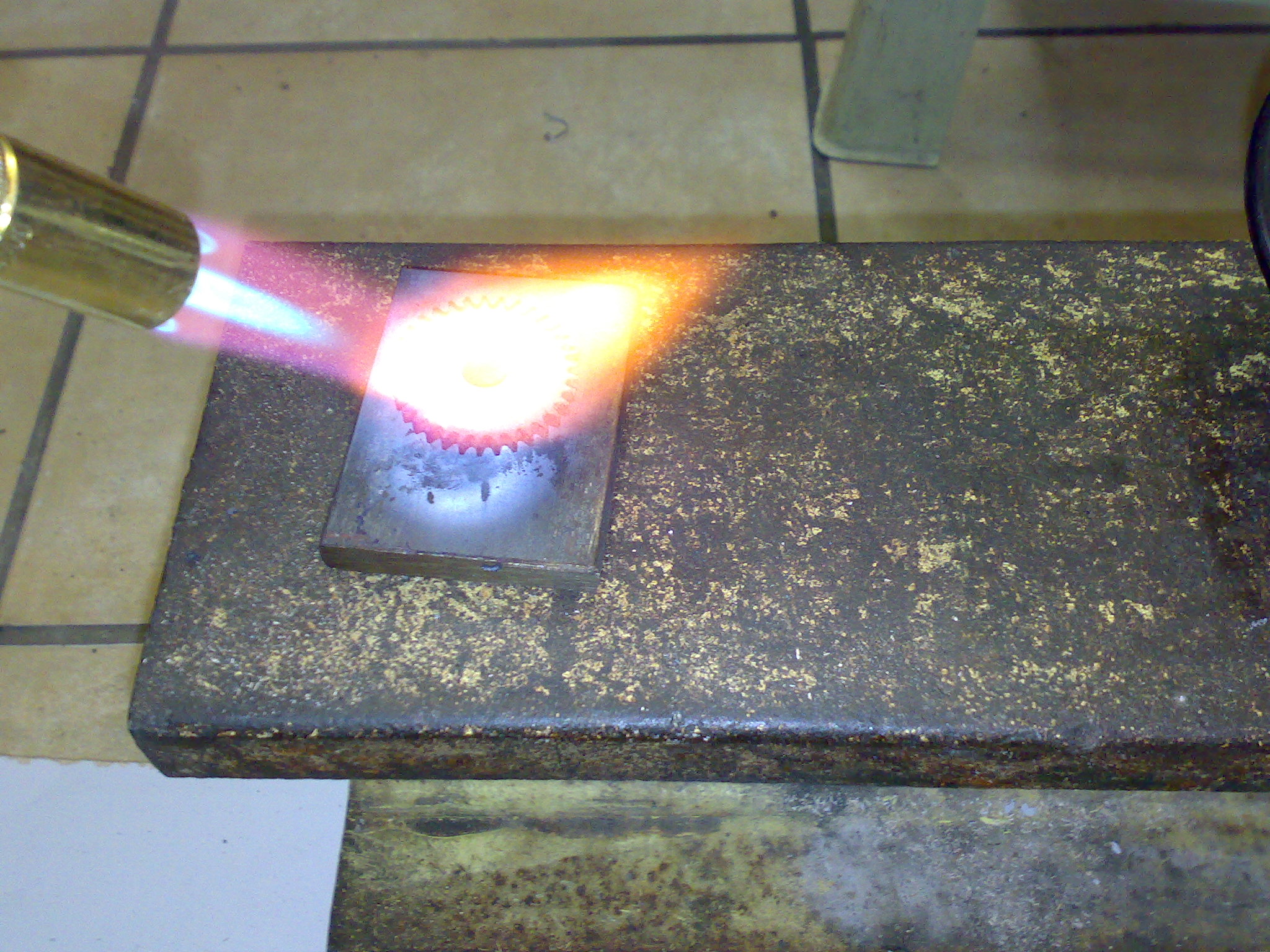

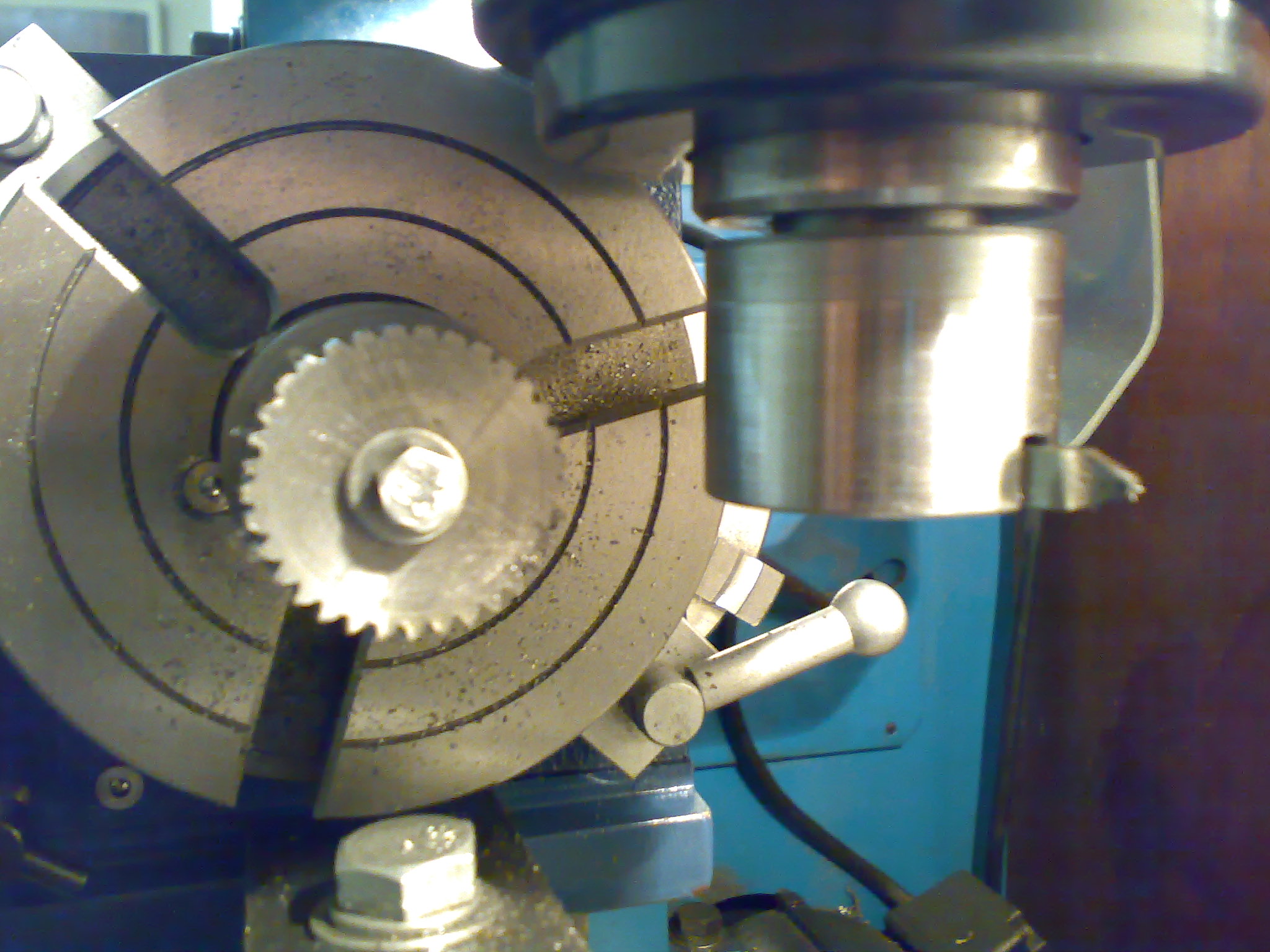

Fly cutting the gears. Another brilliant way of achieving the unexpected! This was done on a CAD program (no. teeth, pitch, pressure angles etc). Blanks turned up and mounted as shown. The bottom pictures shows me heat treating the gear teeth. The gear meshing is checked……

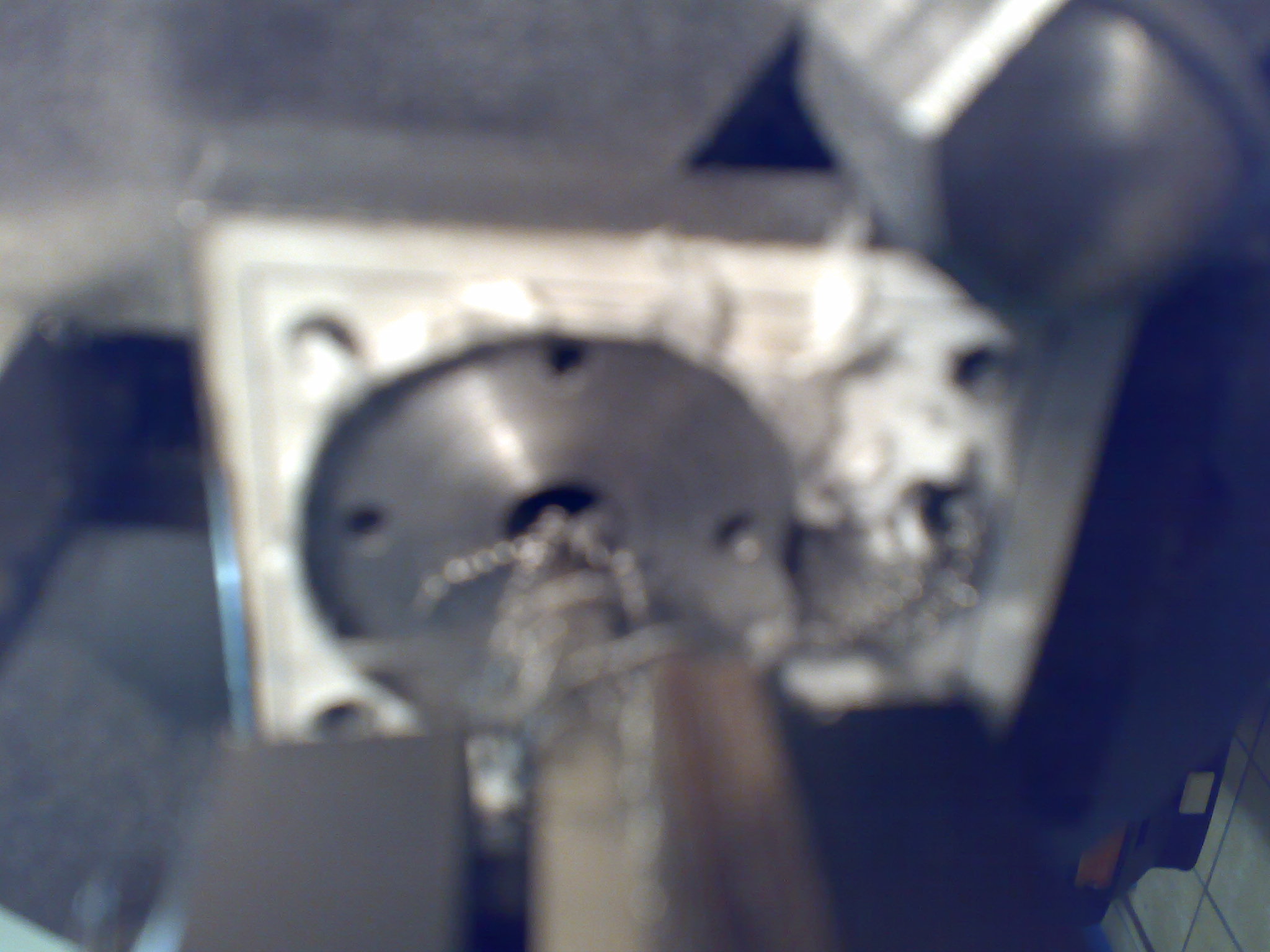

  The last pic shows me turning the gearbox housing. Ok, did a bit of cheating here! Draughted on CAD  - the gearbox housing was printed in 1:1 scale. This was then stuck onto the plate and machined according to the profile.
